Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

Product Categories
Zhuzhou ruili tools CO.,LTD.
Contact Now

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

  • 1
  • 2

Brand Name : Fei Rui

Model Number : Customized

Certification : ISO9001:2008

Place of Origin : Hunan, China (Mainland)

MOQ : 10kg

Price : Be discussed separately

Payment Terms : MoneyGram, Western Union, T/T

Supply Ability : 20000 Kilogram per month

Delivery Time : 20~30 days after order comfirmed

Packaging Details : Solid Carbide Standard Tool Blank (STB) Strip package:plastic box, brown paper box, wooden case

product name : Solid Carbide Standard Tool Blank (STB) Strip

Material : 100% Raw Material Tungsten carbide strip for cutting tools

Chemical Composition : WC, Co

Application : Cutting

Shape : rectangular

Size : Can be customzied

Business Type : 10 Years Manufacturer

Advantage : Free Sample, Best Price, Fast delivery

Trial Order : Acceptable

Type : Cutting tool

Grade : K30

Contact Now

Solid Carbide Standard Tool Blank (STB) Strip, 6" x 3/32" (0.094") x 1-3/8" (1.375") Kerf

We are specialized in various sizes of Tungsten carbide trips. Some clients call this kind of tungsten carbide products as draw plate or tungsten plate, wear plate. Our company also can make customized plates like tungsten carbide parts brazed with steel which is often used as tools in mechanical industry.

Cemented carbide strips is a carbide product with a kind of regular shape like square, rectangular and so on.

Tungsten carbide material has good conductivity, thermal conductivity and corrosion resistance and high

density of 16 g/cm3 to 18.5 g/cm3.Cemented carbide also has very good mechanical strength, small

coefficient of thermal conductivity, large expansion coefficient and elastic coefficient.

If you are interested in our carbide plates, feel free to contact with our team! Thank you.

Specification of Solid Carbide Standard Tool Blank (STB) Strip, 6" x 3/32" (0.094") x 1-3/8" (1.375") Kerf
Grade and Recommended Applications of Carbide Strips

Grade

Physical & mechanical properties
Recommended applications
Density
g/cm3

Typical values
Hardness
HRA		 TRSN/mm2
(Sample B)
YL10.2 14.45 91.8 2880

Excellent overall performance, suitable for processing fiberboard with high density, etc.
YD25 14.38 91.5 2850

Excellent overall performance, cost-effective, suitable for processing fiberboard, MDF with high density, etc.
YM80 14.76 90.9 2590

Excellent overall performance, easy to weld, cost-effective, suitable for processing soft and hard wood,etc
YG8 14.74 90.2 2710

Good versatility, easy to weld, suitable for processing soft and hard wood, etc.
YG6 14.95 91.0 2580

Good versatility, easy to weld, suitable for processing soft and hard wood, etc.

Type: L×W×T
Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf
Type and Size of Carbide Strips
Type Dimensions
Length(L) Width(W) Thickness(T)
320×6×3.2 320 6 3.2
320×8×3.2 320 8 3.2
320×10×3.2 320 10 3.2
320×12×3.2 320 12 3.2
320×15×3.2 320 15 3.2
320×18×3.2 320 18 3.2
320×20×3.2 320 20 3.2
320×22×3.2 320 22 3.2
320×25×3.2 320 25 3.2
320×28×3.2 320 28 3.2
320×30×3.2 320 30 3.2
320×35×3.2 320 35 3.2
320×40×3.2 320 40 3.2
310×10×3.2 310 10 3.2
310×12×3.2 310 12 3.2
310×15×3.2 310 15 3.2
310×18×3.2 310 18 3.2
310×20×3.2 310 20 3.2
310×22×3.2 310 22 3.2
310×25×3.2 310 25 3.2
310×30×3.2 310 30 3.2
290×30×4 290 30 4.0
250×12×5 250 12 5.0
250×15×4 250 15 4.0
250×30×4 250 30 4.0
240×10×4 240 10 4.0
240×15×4 240 15 4.0
240×30×5 240 30 5.0
220×30×5 220 30 5.0
200×6×4 200 6 4.0
199×20×4 199 20 4.0
184×22×4 184 22 4.0
165×21×4 165 21 4.0
160×5×4 160 5 4.0
158×20×4 158 20 4.0
157×10×4 157 10 4.0
154×40×4 154 40 4.0
152.4×4.8×4 152.4 4.8 4.0
152.4×6.4×4 152.4 6.4 4.0
152.4×7.9×4 152.4 7.9 4.0
152.4×9.5×4 152.4 9.5 4.0
152.4×12.7×4 152.4 12.7 4.0
152.4×15.9×4 152.4 15.9 4.0
152.4×19.1×4 152.4 19.1 4.0
152.4×22.2×4 152.4 22.2 4.0
152.4×28.7×4 152.4 28.7 4.0
150×18×4 150 18 4.0
150×20×4 150 20 4.0
150×24×4 150 24 4.0
150×50×4 150 50 4.0
150×70×4 150 70 4.0
140×8×3 140 8 3.0
140×10×3 140 10 3.0
140×12×3 140 12 3.0
140×15×3 140 15 3.0
140×18×3 140 18 3.0
140×20×3 140 20 3.0
140×30×3 140 30 3.0
140×40×3 140 40 3.0
127×3.2×2.4 127 3.2 2.4
127×6.4×2.4 127 6.4 2.4
127×9.5×2.4 127 9.5 3.2

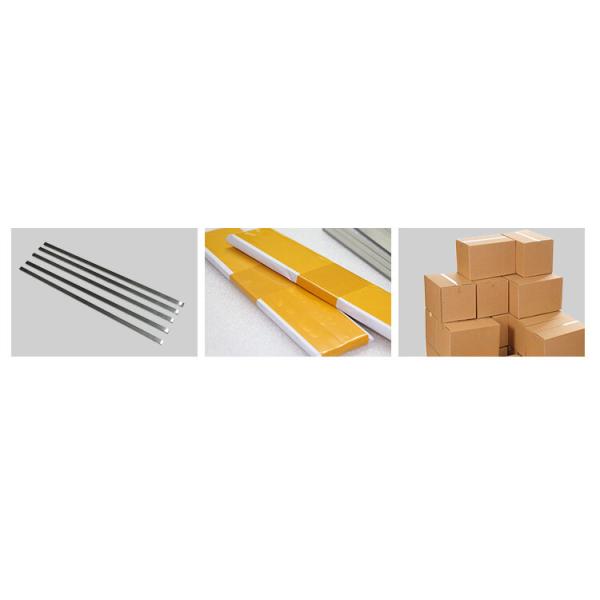

Package of Solid Carbide Standard Tool Blank (STB) Strip, 6" x 3/32" (0.094") x 1-3/8" (1.375") Kerf

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

About US:

We are one of the leading Manufacturer,Exporters and supplier of tungsten carbide products. The products are highly appreciated for their quality. We have been able to attain an indisputable repute in the market owing to our focused approach towards quality. Our organization makes sure that the products are at par with international standards and fulfill the needs of our clients. We have a dedicated team of quality controllers that keeps a close vigil on our products before these are dispatched to the clients. Starting from the procurement of our products till their final delivery, our experts make sure that we adhere to the defined quality norms. With their continuous support, we have managed to surpass our competitors in the market.

Other Info:
Quality policy: We strongly believe our customers deserve the highest quality products and services and we are driven by quality improvement throughout all our design, manufacturing and delivery processes. Since our very first days of operation, we have focused on quality as one of our core corporate objectives.

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

Standard Tool Blank Tungsten Carbide Strips , 6" X 3/32" (0.094") X 1-3/8" (1.375") Kerf

Why US:

1. Good wear resistance, good corrosion resistance and high toughness;

2. Extrusion method and HIP sintering;
3. Carbide wear strips Made of 100% pure raw materials;
4. With advanced equipment and process production;
5. All tungsten carbide wear strips pass the process and final inspection;
6. The ability to stabilize and continuously produce;
7. Our carbide wear strips have high quality and good price;
8. Fast stocking capacity and timely delivery.

9. Strict quality control system

10. Good quality and satisfactory service
